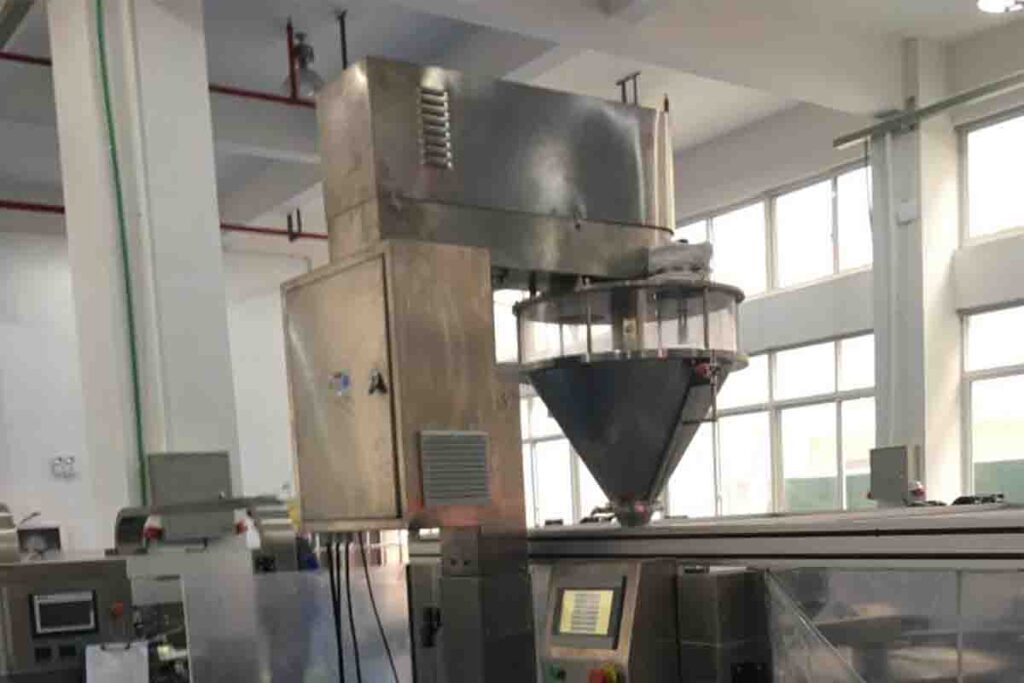

JOYE Machinery offers automatic and semi-automatic powder filling machines for precise dosing of powders in the pharmaceutical, food, chemical, and nutrition industries. Suitable for materials like milk powder, protein powder, spices, and herbal powders, our machines feature servo-driven augers and PLC control for high accuracy, efficiency, and ease of use.
| Item | Specification |
|---|---|
|
Measuring Method
|
Auger dosing
|
|
Filling Weight
|
10g – 1000g
|
|
Filling Accuracy
|
±2% (for <500g); ±1% (for 500g–1000g)
|
|
Packing Speed
|
10–50 bags/min
|
|
Hopper Volume
|
30L
|
|
Power Supply
|
Three-phase 380V, 50/60Hz (customizable to 220V single/three-phase)
|
|
Total Power
|
1.9 kW
|
|
Machine Weight
|
230 kg
|
|
Machine Dimensions
|
800 × 750 × 2500 mm
|

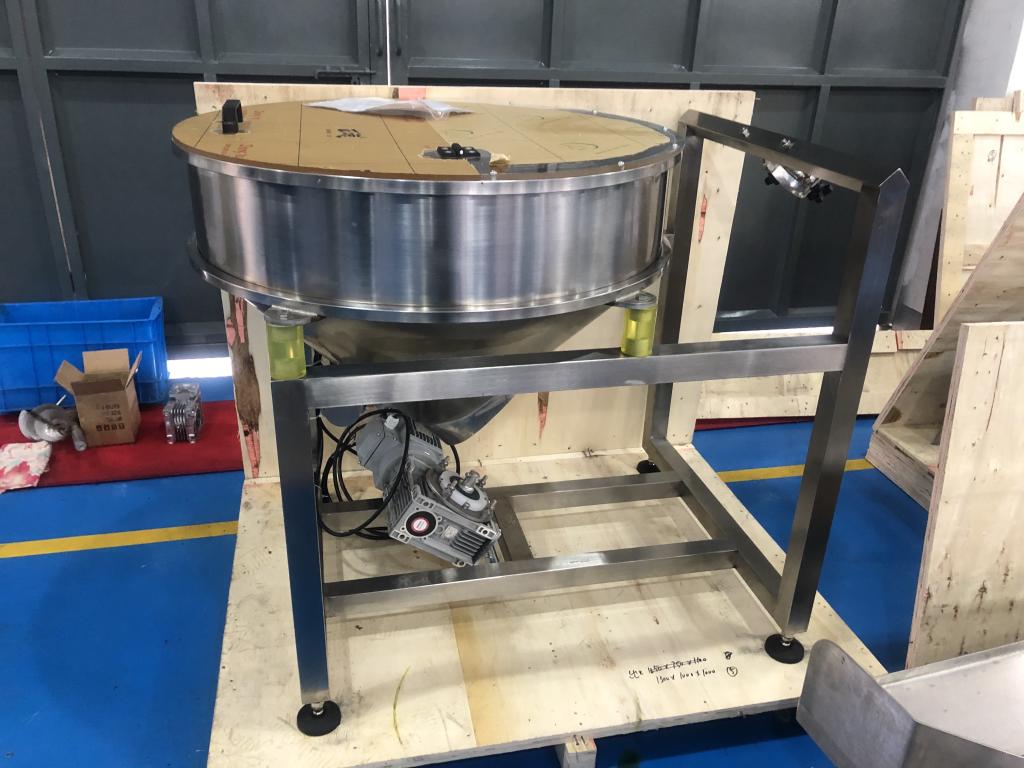

Stores bulk powder before filling
Options: 25L / 50L / customized
Material: SUS304 / SUS316L
Optional: Agitator or anti-bridging design

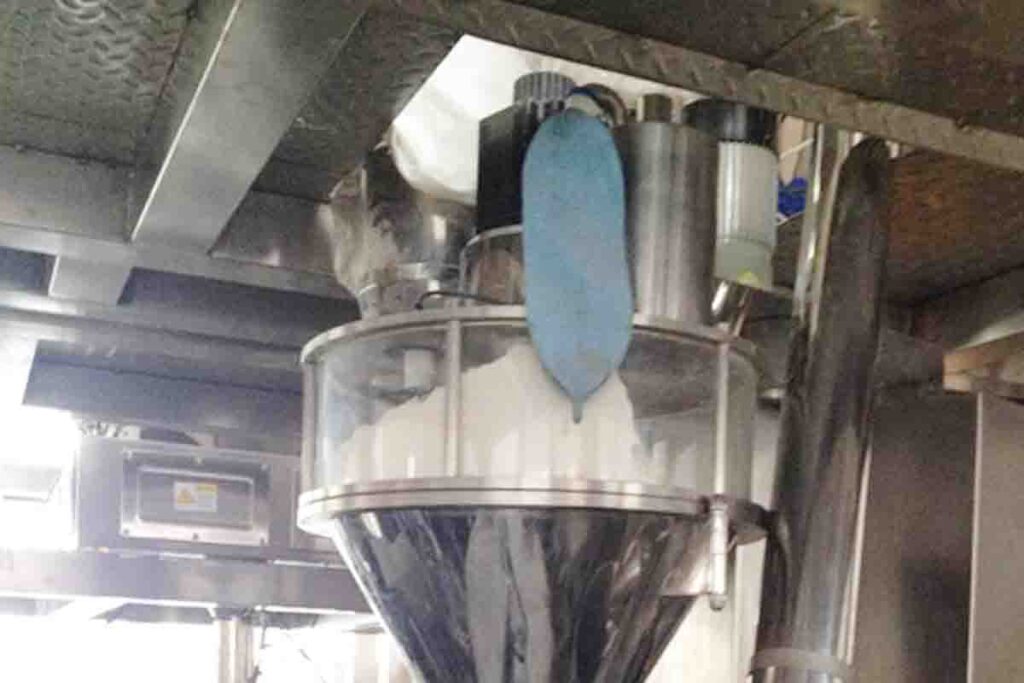

Precise metering and dosing mechanism
Driven by servo motor for high accuracy
Customizable screw size for different powders

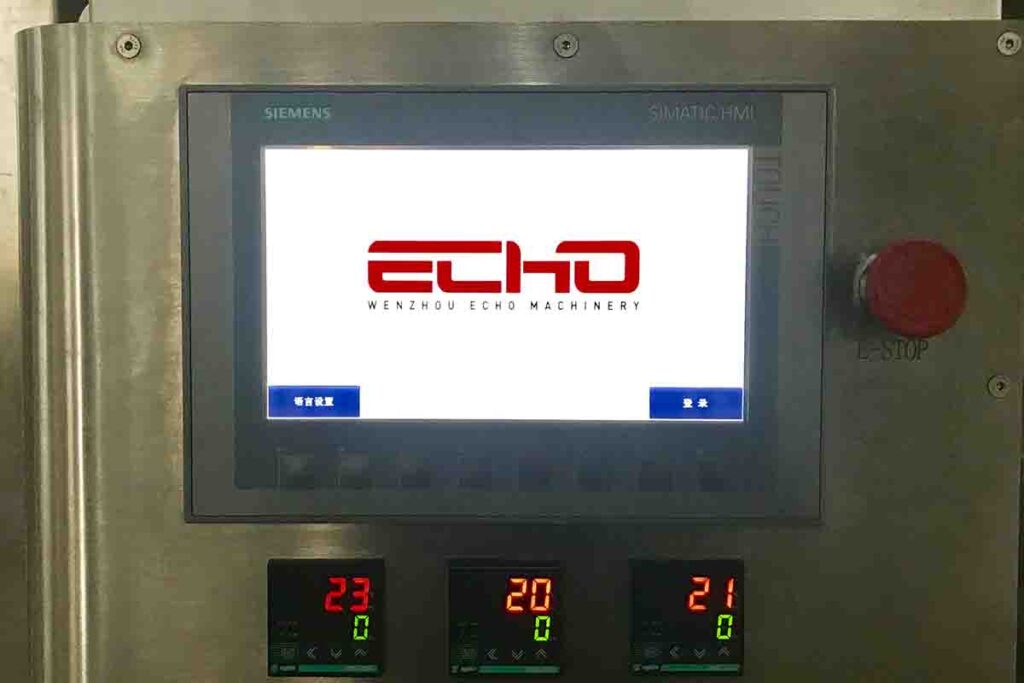

Central control of filling parameters and operation User-friendly touchscreen (HMI) interface
(For weighing-type fillers) Real-time weight feedback Improves filling accuracy and consistency

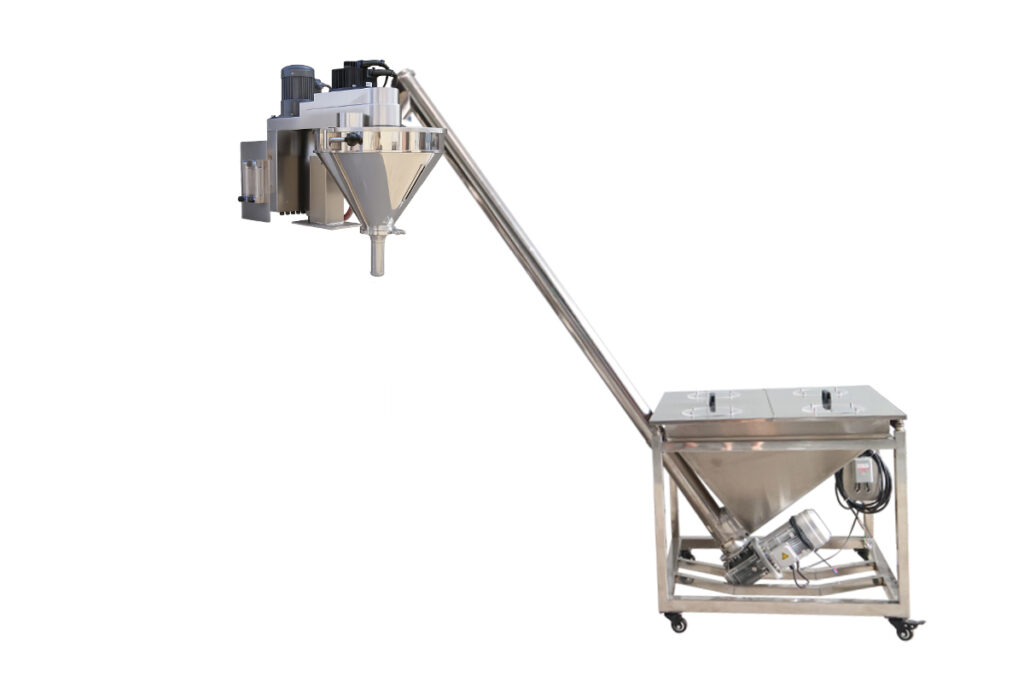

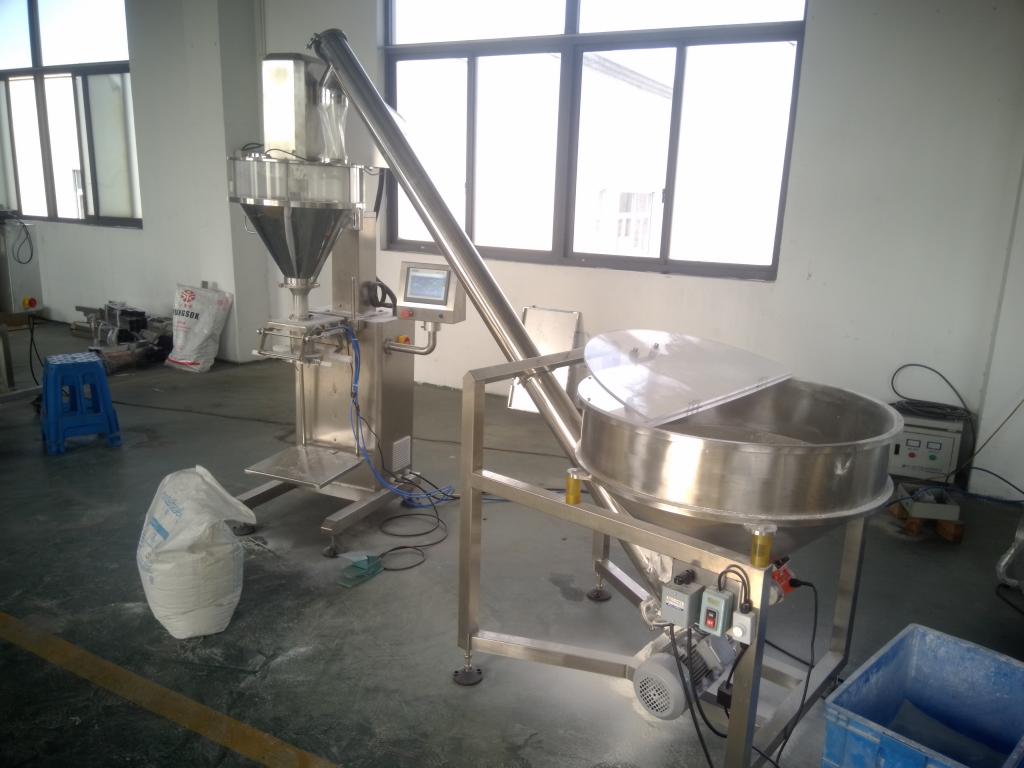

Spiral conveyor / vacuum feeder / screw feeder Automates hopper refilling for continuous operation
Reduces airborne particles during filling Optional vacuum system for fine powder
Powder fillers are used for a wide range of products, including:
Food powders: milk powder, protein powder, coffee, cocoa, matcha, flour, spices
Pharmaceutical powders: antibiotics, herbal extracts, supplements
Cosmetic powders: face powder, clay masks
Chemical powders: pigments, industrial additives
Adjust the machine settings based on your product’s properties:
Filling Volume: Set the amount of product to be dispensed into each container.
Filling Speed: Adjust the speed to balance production efficiency and precision.
Filling Mode: Choose between manual, semi-automatic, or fully automatic modes depending on your production needs.
For viscous or foamy liquids, you may need to adjust filling nozzles or anti-drip functions.
There are several types of powder filling machines depending on the product characteristics and production needs:
1. Auger Filling Machine
The most common type. Uses a rotating auger screw to dispense a fixed volume of powder. Ideal for free-flowing and semi-free-flowing powders.
2. Weighing-Type Powder Filler
Uses a weighing scale for dosing. More accurate for high-value or variable-density powders.
3. Volumetric Cup Filler
Less precise but economical. Used for rough filling or products with consistent density.
4. Manual vs. Automatic Fillers
Manual/Semi-automatic: Best for small batches or startup operations.
Fully Automatic: Includes conveyor, PLC, touch screen, and supports integration with sealing/capping equipment.
When selecting a powder filling machine, buyers often look at:
Filling range (e.g., 10g – 1000g)
Accuracy (±1–2%)
Container compatibility (bottles, jars, pouches)
Speed (e.g., 10–50 fills/min)
Hygiene and cleaning (easy to disassemble, stainless steel build)
Automation and control (PLC system, touch screen, sensors)
Efficiency: Higher output with less manual labor
Consistency: Better fill accuracy, especially for powdered food or supplements
Flexibility: Suitable for many container types and powder viscosities
Compliance: Meets GMP, FDA, and CE standards for food and pharma packaging
A powder filling machine is a critical tool for any business handling powdered products. Whether you’re filling milk powder, protein shakes, or pharmaceutical blends, choosing the right filler ensures speed, accuracy, and product integrity.
Want to learn more about which machine fits your production line? [Contact our experts today] for a free consultation or sample test.
