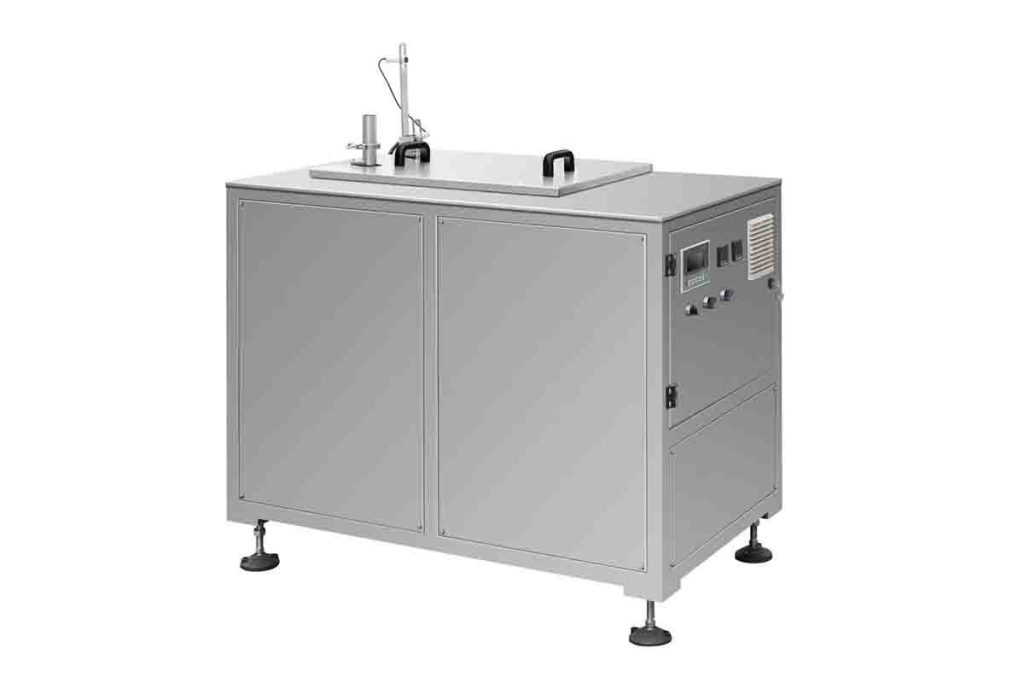

Hotpot Base Filling Machine

Main Features

JKPACK Hot Pot Base Filling Machine is designed for filling viscous and granular sauces (hot and numbing sauce, sesame sauce, beef sauce, sticky chili bean sauce, fresh spicy sauce, spicy sauce, black bean sauce and Pixian Pea Sauce).

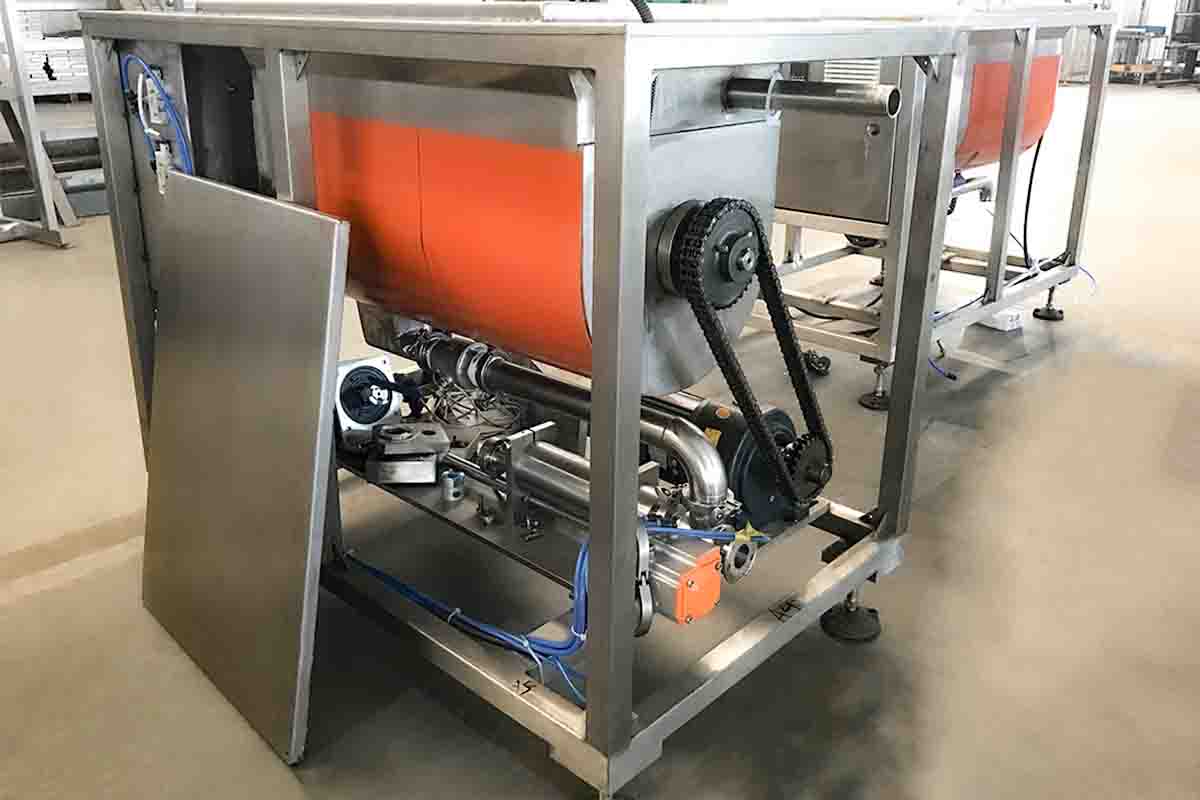

Equipped with automatic stirring function, simple structure, high accuracy and easier operation. Filling valve is controlled by pneumatic valve, higher filling precision. The filling volume and filling speed can be adjusted arbitrarily, and the filling head adopts anti-stretching and lifting filling device, which is in line with GMP requirements.

The Main Technical Parameters

Model
Filling Speed	10-45 packs/minute (depending on the material and weight)
Dimensions	1483x805x972mm (length x width x height)
Storage tank capacity	88L
Feeding port height	970mm (from the ground)
Piston diameter	50, 75, 115 mm (customized according to material and weight)
Piston stroke	300 mm
Valve power	Cylinder
Rotary valve diameter	Customized according to material and weight
Filling head diameter	16, 25, 35 mm (determined by material and weight)
Filling head push stroke	100, 110 mm
Filling head connecting pipe inner diameter	22、28、35 mm
Single filling weight	50 cylinder diameter 30-500g 75 cylinder diameter 65-1200g 115 cylinder diameter 200-3000g
Power supply	4.3KW (excluding stirring and screw motors, excluding elevators)
Compressed air	0.6-0.8MPa, air consumption about 700L/min

application

Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
